Specifications

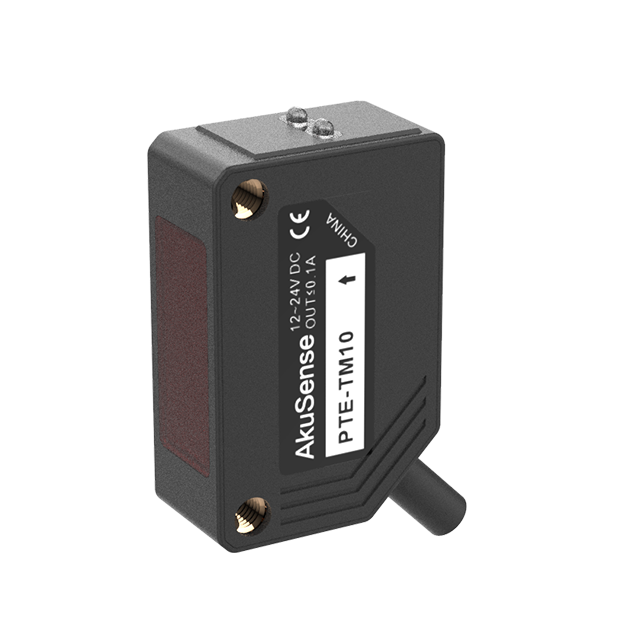

| Model | XPTE-TM10AN |
| Sensing type | Thru-beam Reflection |
| Sensing distance | 10m |
| Sensing object | φ>12mm, opaque |
| Output type | NPN Nomally Closed |
| Switch type | L.on /D.on Switchable |
| Indicator | Emitter: Power: green; Receiver:Operation: green, Motion: red |
| Response time | 150HZ |
| Sensitivity adjustment | Single turn potentiometer |
| Light source | IR LED 623nm (modulated) |
| Operating voltage | 10~30V DC |
| Current consumption | Emitter ≤16mA; Emitter ≤15mA |
| Ambient brightness | Sunlight ≤10000 Lux; Incandescent Lamp ≤ 3000 Lux |
| Ambient temperature | -25℃~+55℃，No freezing |
| Ambient humidity | 35%~85%RH， No condensation |
| Anti-vibration | 10 to 50 Hz with 0.5mm amplitude for 2 hours each in X, Y, and Z directions |
| Protective circuit | Power reverse polarity protection, short circuit protection |
| Degree of protection | IP 65 |
| Connection method | 2M / 3 cores cable 4mm diameter |
| Material | Fiberglass (shell)，PMMA(Window) |
| Accessories | Screwdriver |
In Stock: 0.0
| Stock: | 0.0 Can Dispatch Immediately |
| Factory Lead Time: | 0 Days |
| Price: |
₹ 1.00 ₹ 1.00₹ 1.00 |
