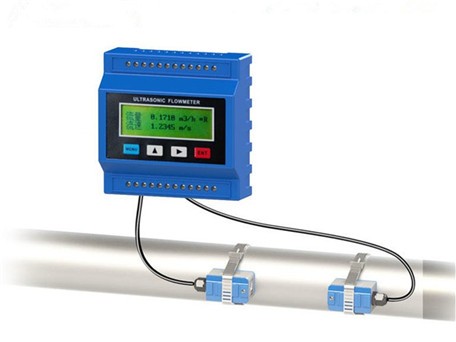

Clamp On Ultrasonic Flow Meter
Specifications
| Model | UF2000M |
| Type | Clamp on type |
| Pipe Size | 32-6000mm |
| Working tempe | -30°C~90˚C |
| High-temperature | -30°C~160˚C |
| Flow output signal | 0~10mA/4~20mA /Pulse/MODBUS/HART |
| Supply voltage | AC220V or DC24V |
| Linearity | 0.5%, Repeatability: 0.2%, Accuracy: ±0.2% |
| Powerful Recording Function | last 64 days/64 months/5 years |
More Information
UF2000M Clamp On Ultrasonic Flow Meter is a non-contact type clamp-on flowmeter, which can not only measure the flow of large pipe diameter medium, but also can be used for the measurement of strong corrosive, non-conductive, radioactive and flammable and explosive medium.
In Stock: 0.0
| Stock: | 0.0 Can Dispatch Immediately |
| Factory Lead Time: | 15 Days |
| Price: |
₹ 39,100.00 ₹ 39,100.00₹ 39,100.00 |
