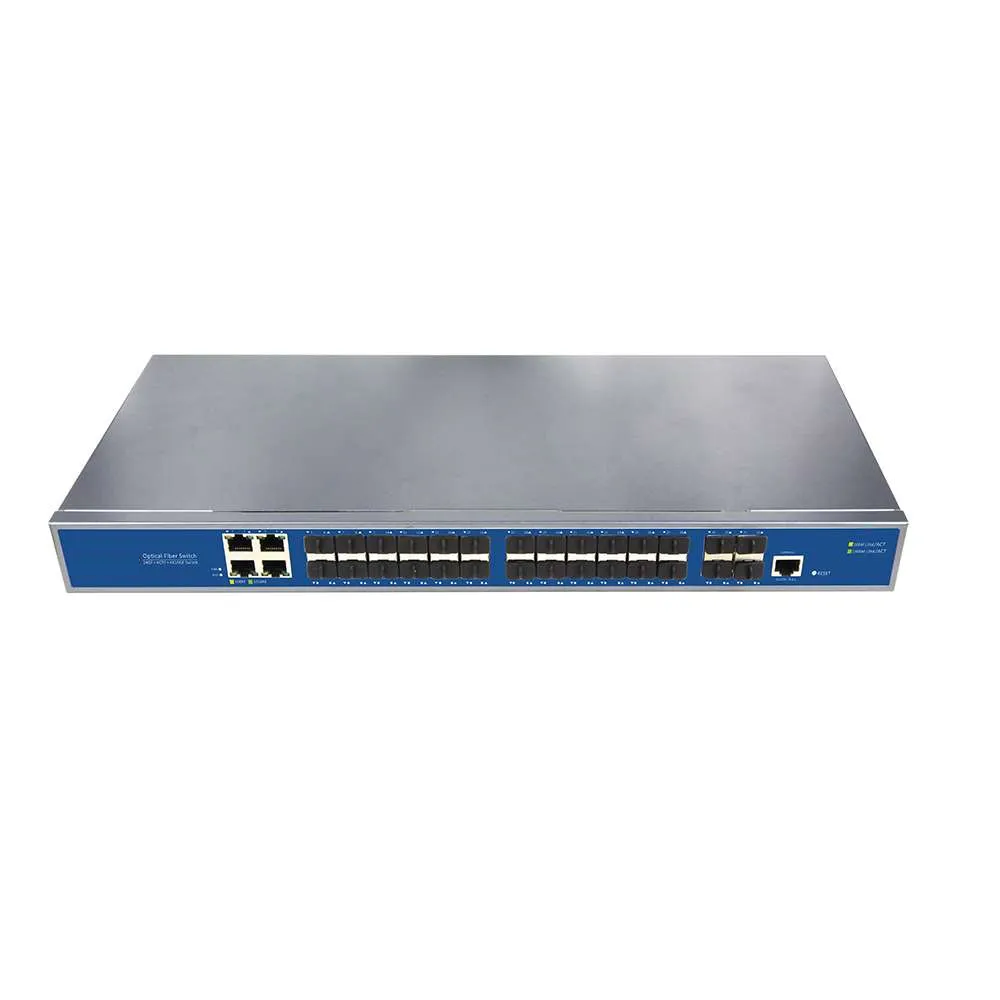

32 Ports L2 Managed Ethernet switch with 10G uplink

Product Code XC-S3932GM
Description 32 Ports L2 Managed Ethernet switch with 10G uplink
Make XEXAGON
Connection CE
Model XC-S3932GM
Interface 4*10/100/1000M RJ45 ports (Data); 24*100/1000M SFP ports (Data) 4*1/10G SFP+ uplink fiber ports (Data)
Network Management Type L2+
Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3ae 10GBase-SR/LR; IEEE802.3x
PoE Standard IEEE802.3af/at
Ethernet Port Feature Port1-4 10/100/1000Base-T, auto-sensing, full/half duplex MDI/MDI-X self-adaption
Fiber Port Feature 1G/2.5G/10G SFP fiber interface (Fiber module is not included, need to order separately, module optios include single/multi-mode, single/dual fiber, LC)
Forwarding Mode Store and Forward (Full Wire Speed)
Switching Capacity 598Gbps
Forwarding Rate 97.2Mpps
MAC 32K
Buffer Memory 32M
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meter) ;100BASE-TX: Cat5 or later UTP (≤100 meter) ;1000BASE-T: Cat6 or later UTP (≤100 meter)
Optical Fiber Cable Multi-mode:850nm 0~300M(10G) ,850nm 0~500M (1.25G); Single-mode:1310nm 0~40KM,1550nm 0~120KM.
Power Supply Pin Default: 1/2(+),3/6(-)
Max / Average Power Per Port 30W/15.4W , 30W/30W
Total PWR / Input Voltage 60W/(AC100-240V)
Power Consumption Standby:<15W; full load:<40W
Power Supply Built-in power supply, AC 100~220V 50-60Hz
LED Indicator Power indicator: PWR (Green); Network indicator: 1-24(Link/Act)/ (Orange),25-36(Link/Act)/ (Green); POE indicator: PoE (Green) SYS:(Green)
Reset Switch Yes, One-button factory reset
Operation TEMP/Humidity -20~+55°C;5%~90% RH Non condensing
Storage TEMP /Humidity -40~+80°C;5%~95% RH Non condensing
Protection IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV
Protection Level IP30
Dimension (L*W*H) 440*290*44.5mm
Net /Gross Weight <4kg /<5kg
Installation Desktop, 19-inch 1U cabinet
Certification CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS
Interface IEEE802.3x flow control (full duplex) Broadcast storm suppression for port rate support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps. Temperature protection setting Energy saving configuration of port EEE Ethernet
PoE Management Total power limit of PoE power supply PoE output power allocation per port, close /af/at PoE output priority configuration for each port PoE working state display per port Power delay start PoE work and time scheduling
Layer3 Function Support L2+ managed function, Support IPV4/IPV6 management Support layer3 soft routing (weak three tier) forwarding, Support different network segments, communication between different VLAN Support static routing / default routing 128, 1024 ARP software forwarding
VLAN Support port based VLAN (4K), IEEE802.1q Support protocol based VLAN Support Access, Trunk, Hybrid three types of port configuration Support QinQ configuration
Port Aggregation Support LACP Support static polymerization Support the largest 8 aggregation groups, each aggregation group supports 8 ports.
Spanning Tree STP (IEEE802.1d) RSTP (IEEE802.1w) MSTP (IEEE802.1s)
Industrial Ring Network Protocol Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. The self-healing time of the ring network is less than 20ms
Multicast Support IGMP Snooping V1/V2 and support 1024 multicast groups at most. Support the user's quick departure mechanism Support MLD Snooping V1/V2 Support multicast VLAN
Image Bi-directional traffic mirroring supporting the basic port
QoS Diff-Serv QoS Each port supports 8 output queues Support 802.1p/DSCP priority mapping Support queue scheduling mechanism (SP, WRR, SP+WRR) priority tag Mark/Remark stream based packet filtering Support for stream-based redirection Support flow-based speed limit
ACL Support L2 to L4 packet filtering function, can match the first 80 bytes of the message, provide based on the source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL. Support ACL based on port and VLAN
Safety Characteristics Support user grading management and password protection Support IEEE802.1X authentication / centralized MAC address authentication Support AAA&RADIUS authentication Support the number of MAC address learning restrictions Support MAC address black hole Support SSH 2 to provide secure passwords for user login. Support SSL to ensure data transmission security Support port isolation Support the speed limit function of ARP message Support IP source address protection Support ARP intrusion detection function Support against DoS attacks Support port broadcast message suppression Support host data backup mechanism Binding capabilities of IP+MAC+VLAN+ ports
DHCP Support DHCP Client Support DHCP Snooping Suport DHCP Serve Suport DHCP Relay
Management And Maintenance Support Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration Support WEB network management (HTTPS) Support FTP, TFTP, Xmodem, SFTP file download management Support SNMP V1/V2C/V3 Support one bond reduction Support NTP clock Support system work log Support Ping detection Support cable state detection Support CPU instant utilization status view Support link layer discovery protocol LLDP Support NMS intelligent management cente
System Requirements Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; Cat5e or later Ethernet cable; TCP/ IP, network adapter and network operating system (Microsoft Windows, Linux or Mac OS X) installed on on every computer in the network.
