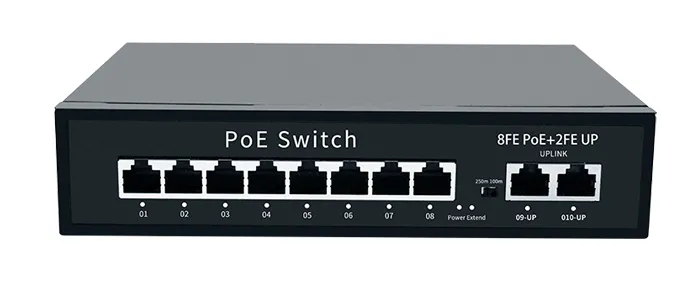

8-Port 100M PoE Unmanaged Switch With Built-In Power Supply Wholesale

Product Code XC-S1710CF-AP
Description 8-Port 100M PoE Unmanaged Switch With Built-In Power Supply Wholesale
Make XEXAGON
Connection CE
Model XC-S1710CF-AP
Fixed Port 8*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-T Uplink RJ45 ports (Data)
POE Port Port 1-8 support PoE af/at
Feature The port 1-8 support 10M/250 meters long distance transmission.
Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3x
Ethernet Port Feature 10/100Base–T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Forwarding Mode Store and Forward
Buffer Memory 1.25M
MAC 2K
Twisted Pair Transmission 10BASE-T: Cat5 UTP (≤300 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter)
Power Supply Pin Default 1/2(+), 3/6(-); Optional 4/5(+), 7/8(-)
MAX / AVERAGE Power Per Port 30W/15.4W
Total PWR / Input Voltage 96W (52VDC)
Power Consumption Standby:<4W;Full load:<96W
LED Indicator Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Green),9–10(Link/Act)/ (Green)
Power Supply Build-in power adaptor AC100~240V 50-60Hz,120W
Operation TEMP / Humidity -20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity -40~+75°C;5%~95% RH non condensing
Dimension 193*38*28mm
Net /Gross Weight <1kg / <1.5kg
Installation Method desktop type, wall mounted
Protection Level Port lightning protection : 4KV 8/20us; Protection level: IP30
Certification CCC; CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days
Price:

₹ 3,250.00 3250.0 INR ₹ 3,250.00
