Fuel Level Sensor With Submersible Type For Fuel Tank In Model

Product Code XNHPT604-LT
Description Level Sensor / Submersible Level Transmitter
Make XEXAGON
Connection CE
Parameter HPT604 (LT Type)
Pressure Range 0-0.1Bar…..5 Bar / 0-1M……..50m H2O Optional (See P1 page description)
Overload 200% F.S.
Burst Pressure 400% F.S.
Accuracy: ≤ ±0.5%F.S (≥2m level range and between0-50 degree C); ≤ ±1.0%F.S (0.5m≤Level Range<2m level range and between0-50 degree C)
(Linearity Hysteresis Including non-lin., rep. and hys.
Repeatability) Optional
Long Stability ≤ ±0.2 % of span/year
Temperature Range -30 to +70 degree C
Temperature Accuracy ±1%F.S. (± 1 ℃)
Working Temp -30℃~80℃
Storage Temp -40℃~85℃
Temperature Compensation 0-50℃ (Range<100kPa); -10℃~60℃(Range≥100kP)
Medium compatible Compatible with SUS304 Stainless Steel
Electronic Wire 2 Wires , 3 wires , 4 wires
Output 4~20mA Double 4-20mA Level&Temp RS485 Modbus RTU
Power Supply 10~30 V DC / 12~30 Vdc / 7~30 Vdc
Overload Voltage 32Vdc / 32Vdc / 36Vdc
Polarity protection Available for signal wires or Power wires each other reverse, unavailable signal and power wire reverse!
Insulate resistance >100M Ω@100V
Zero Temp. Drift 0.75%FS/℃(≤100kPa); 0.5%FS/℃(>100kPa)
FS Temp. Drift 0.75%FS/℃(≤100kPa); 0.5%FS/℃(>100kPa)
Electronic connection Fixed cable and water proof IP68
Response time ≤200ms
Data overtime interval ≥50ms
Material of Housing 304 Stainless Steel
Material of Cells 316L Stainless Steel
Blind Zone of Probe 5 mm
Pressure Type Gauge pressure
Certificate approving ATEX intrinsic safety or ExdIICT6, TUV RoHS and CE Certificate approving
EMC Standard EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1
Lighting Protection(optional functions) Air conduction more than 8000V; external sensor more than 4000 Voltage protection.
Cable optional Cable materials are optional according request, we offer 3 type special cable as follow: PE Cable(Water Proof); PU Cable(Diesel Proof); FEP Cable(Anti-Corrosive for gasoline)
Weight Net weight is about 0.35KG, Full Packing weight is about 1.0 KG (Excluding Cable)
More Information

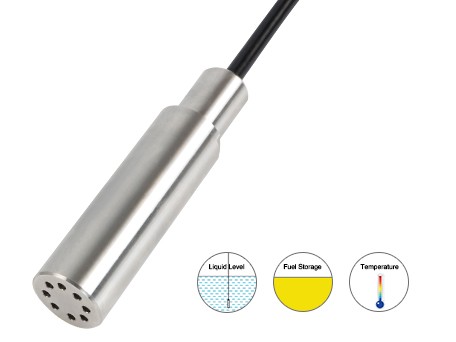

Fuel Level Sensor With Submersible Type For Fuel Tank In Model HPT604-LT is designed based on the "submersible" shape, it is mainly used to measure the level, volume, fuel storage and fuel temperature of fuel tanks (underground storage tanks). With wireless terminals, remote monitoring solutions can be realized.

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days
