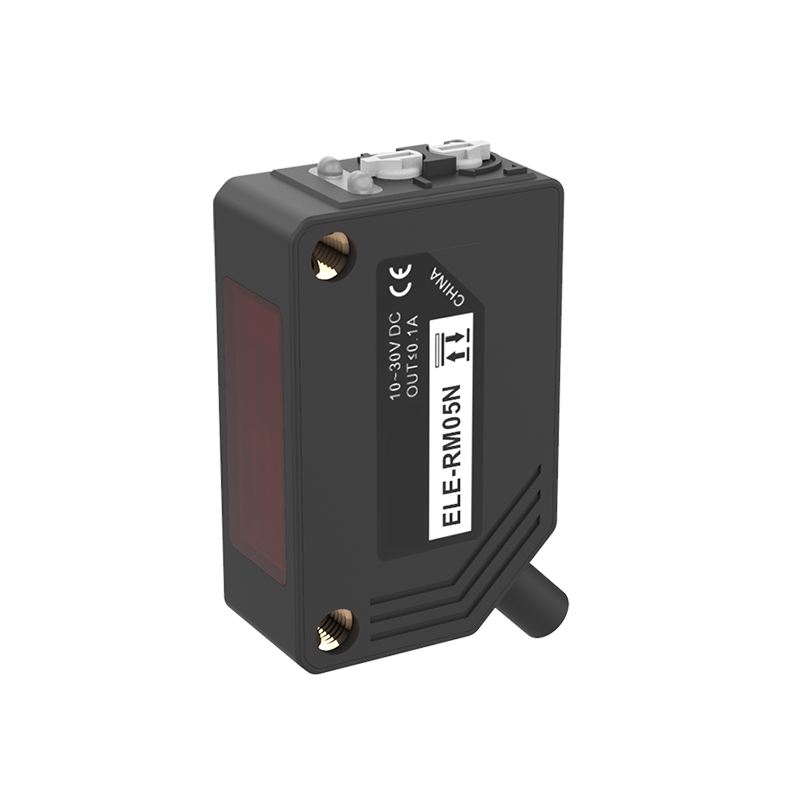

Laser sensor

Model No. XNELE-RM05N Square type
Description Laser sensor
Make Xexagon
Certification CE
Model XNELE-RM05N Square type
Detection mode Retro-reflection
Detection distance 5m
Spot diameter ±∅20mm/5m
Indicator light Working indicator light: green; Action indicator: Red
Sensitivity regulation Single coil potentiometer
Output mode NPN open collector
Switch mode L.on (light-in action)/D.on (light-shielding action) can be switched
Response time ≤2ms
light source Laser 650nm (modulation) Class 2
Working voltage 10~30V DC
Current consumption ≤20mA
Environmental illumination Incandescent lamp: 3000 lux or less / Sunlight: 5000 lux or less
Ambient temperature -25℃~+55℃, no freezing
Ambient humidity 35%~85%RH, no condensation
Protection circuit Power reverse polarity protection, output reverse polarity protection, surge protection, short circuit protection Power reverse polarity protection, surge protection, short circuit protection
Degree of protection IP 65
Material PBT + glass fiber (shell), PMMA (lens)
Way out 2M/3 core cable
Anti-vibration 10~50Hz, 0.5mm amplitude, 2 hours each in X, Y, Z directions
Accessories Screwdriver
