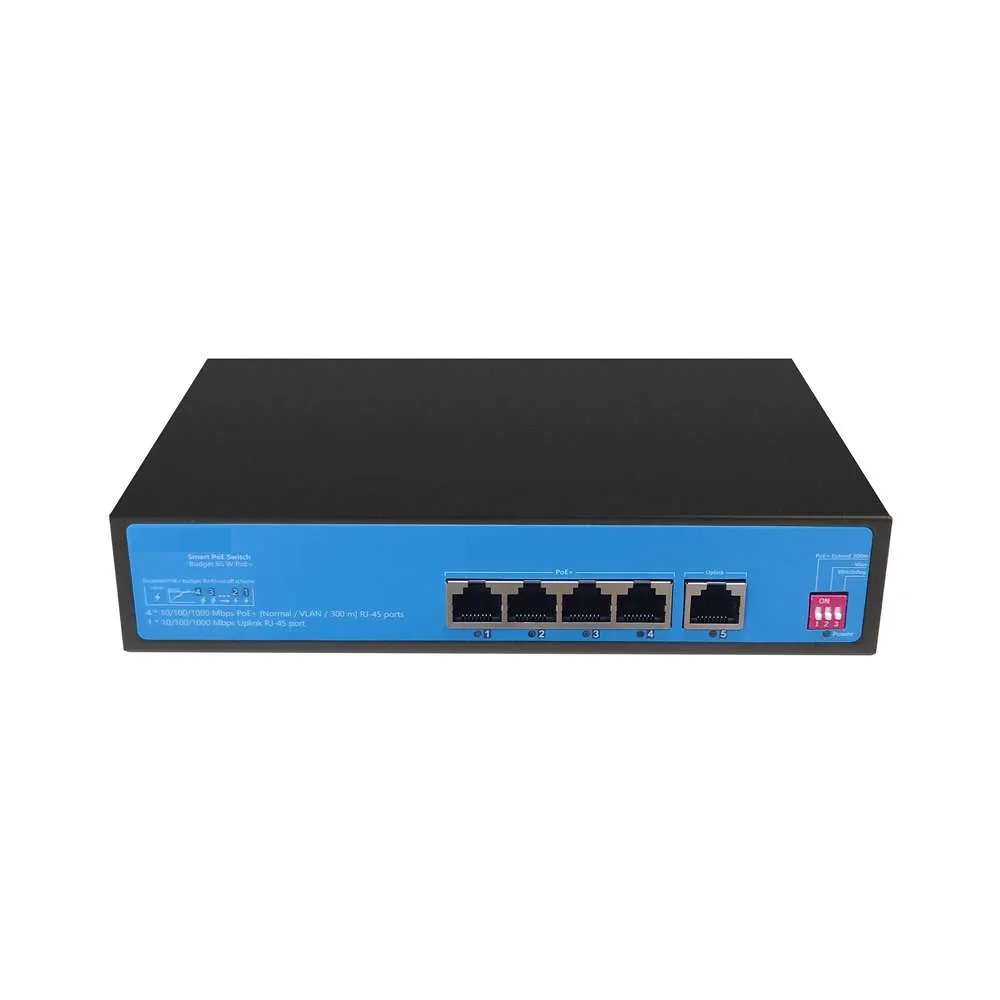

5 Ports Full Gigabit PoE Switch
Specifications
| Fixed Port | 4*10/100/1000Base-T/TX PoE ports (Data/Power) 1*10/100/1000Base-T/TX Uplink RJ45 ports (Data) |
| POE Port | Port 1-4 support PoE |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3x |
| PoE Standard | IEEE802.3af/at |
| Ethernet Port Feature | 10/100Base-T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive |
| Fiber Port Feature | Store and Forward (Full Wire Speed) |
| Forwarding Mode | 10Gbps |
| MAC | 4K |
| Buffer Memory | 1M |
| Twisted Pair Transmission | 10BASE-T:Cat5 UTP(≤250 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) |
| Power Supply Pin | Default 1/2(+), 3/6(-) |
| MAX / AVERAGE Power Per Port | 30W/15.4W |
| Total PWR / Input Voltage | 65W |
| Power Consumption | Standby:<6W; Full load:<120W/240W |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Green),5-6(Link/Act)/ (Green); POE indicator: PoE (Orange) |
| Power Supply | Build-in power adaptor AC100~240V 50-60Hz,120W |
| Operation TEMP / Humidity | -20~+55°C:5%~90% RH non condensing |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH non condensing |
| Dimension (L*W*H) | 195*130*40mm |
| Net /Gross Weight | <0.75kg / <1kg |
| Installation method | desktop type ,wall mounted |
| Port lightning protection / level | Port lightning protection : 4KV 8/20us; Protection level: IP30 |
| Certification | CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
