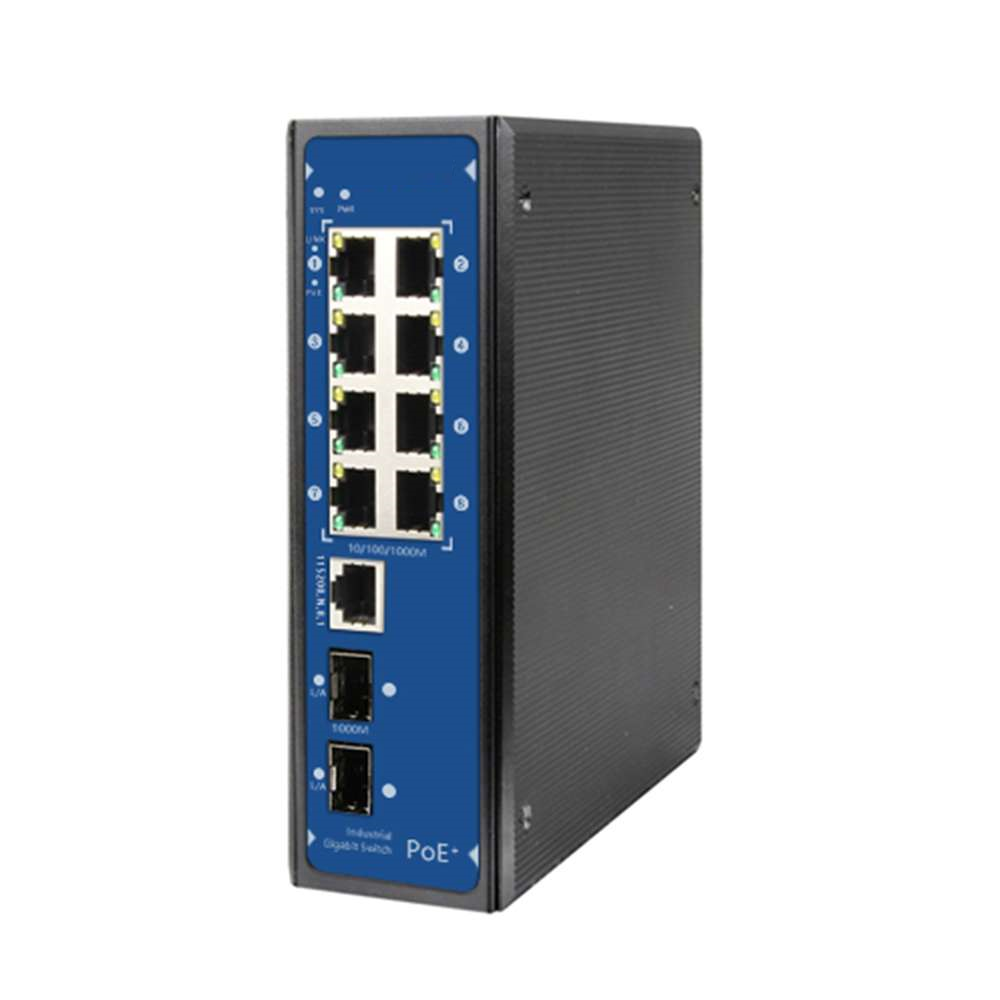

8 Port 95W Port Gigabit Managed Industrial PoE Switch

Product Code XC-PIS3810M-8GE-BT
Description 8 Port 95W Port Gigabit Managed Industrial PoE Switch
Make XEXAGON
Connection CE
Interface 8*10/100/1000Base-TX PoE ports (Data/Power) 2*1G/2.5GBase-X SFP slot (Data) 1 * RS232 console port (115200, N,8,1) 2 set of V+, V- redundant DC power interface (4 Pin Phoenix terminal)
PoE Port Port 1-8 supports POE @ IEEE802.3af/at
Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000/2500Base-X; IEEE802.3x
PoE Standard IEEE802.3af/at
Ethernet Port Feature 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive
SFP Port Characteristic Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module.
Forwarding Mode Store and Forward
Switching Capacity 20Gbps (Non-blocking)
Forwarding Rate@64byte 14.88Mpps
MAC 8K
Buffer Memory 4M
Jumbo Frame 10K
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter)
Optical Cable Multimode: 850nm 0 ~ 500M; Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM
Power Supply Pin 1/2/4/5 (+), 3/6/7/8 (-)
Working Voltage 48-57VDC; 4 Pin industrial Phoenix terminal, support anti-reverse protection.
Max Power Per Port 30W; IEEE802.3af/at
Total PWR / Input Voltage 480W (48-57VDC)
Power Consumption Standby:<7W; Full load:<480W
LED Indicator Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Orange),9-10(Link/Act)/ (Green); POE indicator: PoE (Green)
Power Supply No, optional 48V/120W or 48V/240W industrial power supply
Operation TEMP / Humidity -40~+85°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+125°C;5%~95% RH Non condensing
Dimension 165*120*52mm
Net /Gross Weight <0.8kg / <1.2kg
Lightning protection / protection level Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class B IEC61000-6-2(Common Industrial Standard)
Certification CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;
