INDUSTRIAL TOUCH MONITOR-12 INCH

Product Code X-12''
Description 12 inch Capacitive touch screen all in one industrial touch screen panel tablet pc
Make XEXAGON
Certified CE
CPU i3 (i5/i7 optional)
WiFi,3/4G module 802.11b/g/n(optional),Support 3g/4g (optional)
HDMI 1*HDMI output
USB 4*USB 3.0
Network 2*RJ45 with 1000 Base-T
COM Com(RS 485)*2
Power supply 1*DC lock phoenix terminal,Support 9-36V
Audio output 1*3.5mmTRS port
Other 8*GPIO (optional)
Screen type LCD screen with LED backlight
Resolution 1024*768(display area:210.4(w)× 157.88mm (H))
Contrast ratio 1900/1/20 20:1
Brightness 200cd/m2
Screen Ratio 4:3
Material of front and back cover Aluminum
Craft Glass frame paste, aluminum die casting
Heat dissipasion Fanless aluminum fin heat dissipation
Color Black,grey
Panel indicator light Power state, hard disk state
Whole size 281*228*56.8mm
Touch Type Projected capacitive touch screen
Touch point 10 point touch
Physical Resolution 4096x4096
Response time <5ms
Accuracy <2.5mm
Transparency ≥90%
Protection The surface is coated with 1:1 PVC protective film
Working environment 20℃~ 70℃;Humidity:10%~ 90%
Storage environment Temperature:-40℃~80℃ ; Humidity:10%~90%

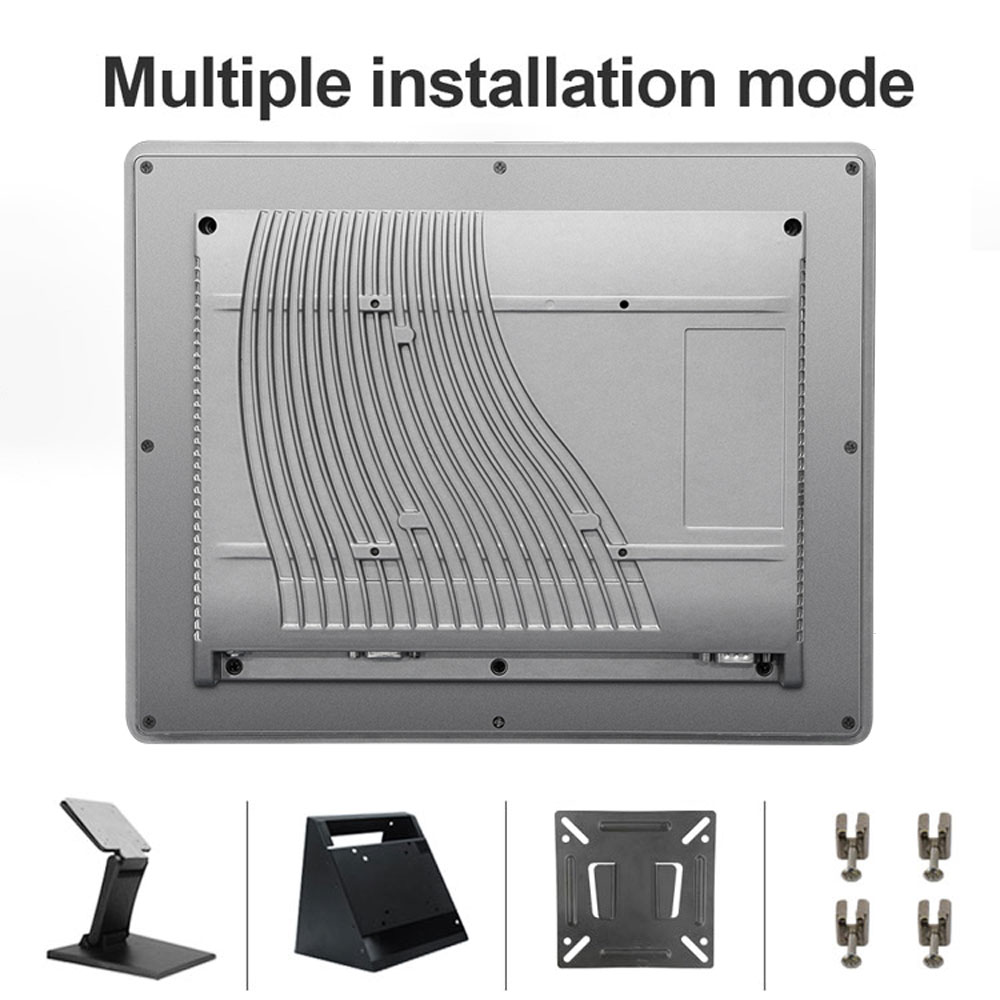

installation ways Embedded panel type、VESA100*100mm
Power consumption 24W
Bracket wall mounted bracket,embedded bracket,desktop bracket(optional)
Adapter Power adapter

In Stock: 0.0

Stock: 0.0 Can Dispatch Immediately
Factory Lead Time: 15 Days
Price:

₹ 23,575.00 23575.0 INR ₹ 23,575.00

₹ 23,575.00

    This combination does not exist.

    Add to Cart
