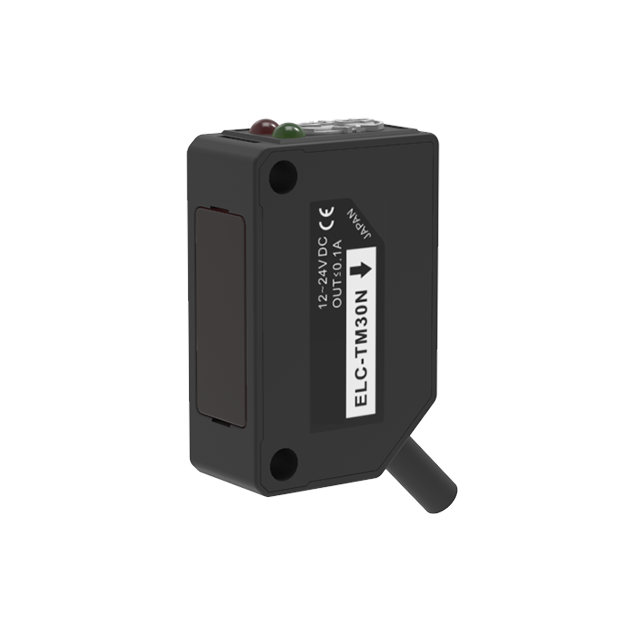

Laser sensor
Specifications
| Model No. | XNELC-TM30N Square type |
| Sensing type | Thru-beam |
| Sensing distance | 30cm |
| Beam size | φ30mm/30m |
| Switch type | Selectable L.on/D.on |
| Indicator | Laser indicator: Green; Output indicator: Yellow |
| Response time | 0.25ms |
| Senstivity adjustment | Single turn rotational knob |
| Light source | Laser(650nm) |
| Laser class | Class 1 |
| Operating voltage | 12~24V DC±10% |
| Current consumption | ≤30mA |
| Ambient temperature | -10℃~+50℃, No freezing |
| Ambient humidity | 35%~85%RH, No coagulating |
| Anti-vibration | 10~55HzAmplitude1.5mm |
| Impact resistance | 50G(500m/s2) |
| Degree of protection | IP 67 |
| Accessories | Bracket |
In Stock: 0.0
| Stock: | 0.0 Can Dispatch Immediately |
| Factory Lead Time: | 15 Days |
| Price: |
₹ 17,060.00 ₹ 17,060.00₹ 17,060.00 |
