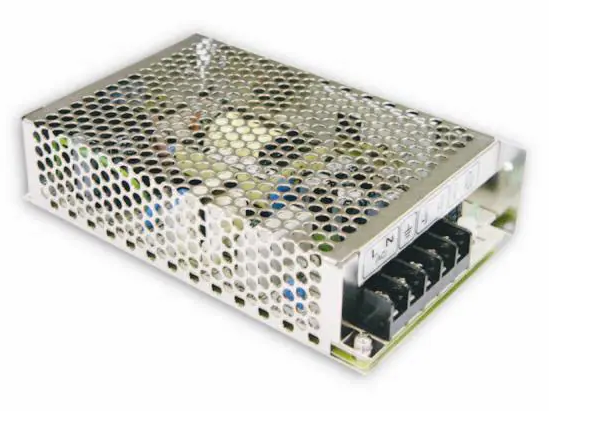

S-150W Single Output Switching Power Supply, 24V, 6.5A
Specifications
| DC Output voltage | 24V |
| Output voltage range(Note:2) | ±1% |
| Rated output current | 6.5A |
| Output current range | 0~6.5A |
| Wave and noise(Note:3) | 100mVp-p |
| Inlet stability(Note:4) | ±0.2% |
| Load stability(Note:5) | ±0.2% |
| DC output power | 156W |
| Efficiency | 85% |
| Adjustable range for DC voltage | 21~28V |
| AC input voltage range | 85~132VAC/176~264VAC selected by switch 47~63Hz,248~370VDC |
| Input current | 3.2A/115V 1.6A/230V |
| AC Inrush current | Cold-start current 30A/115V 60A/230V |
| Leakage current | <3.5mA/240VAC |
| Overload protection | 105 ~ 150% Protection type :pulsing hiccup shutdown Reset: auto recovery. |
| Over-voltage protection | 115%~135% Protection type :shut off output |
| Temperature coefficient | ±0.03%/°C(0~50°C) |
| Setup, rise, hold up time | 100ms, 50ms, 20ms |
| Vibration | 10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes |
| Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
| Working temperature and humidity | -10°C~+60°C(Refer to output load derating curve),20%~90%RH |
| Overall dimension | 199X98X38mm (L*W*H) |
| Weight | 0.85kgS |
| Safety standards | UL 1950 TUV EN60950 Approved |
| EMC standards | CISPR22(EN 5022),IEC1000-4-2,3,4 IEC1000-3-2Verification |
In Stock: 0.0
| Stock: | 0.0 Can Dispatch Immediately |
| Factory Lead Time: | 15 Days |
| Price: |
₹ 1,088.00 ₹ 1,088.00₹ 1,088.00 |
